Special equipment · Up front

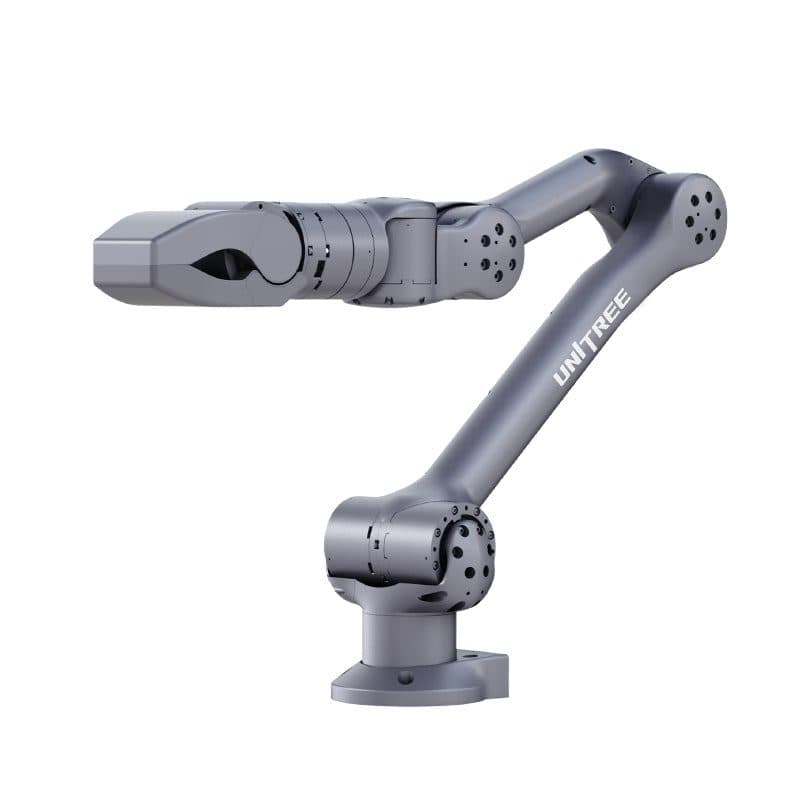

Z1
- Maximum torque
- 33 N·m
- Encoder resolution
- 15 bit
- Weight
- 405 g
- Control frequency
- 1 KHz
Technical specification · from the datasheet
| Backlash | ~6 arcmin |
|---|---|
| Communication | RS 485 |
| Maximum torque | 33N·m |
| Encoder resolution | 15bit |
| Weight | 405g |
| Force control accuracy | ~0.2N·m |
| Size | Φ65*52mm |
| Control frequency | 1KHz |
| Reduction ratio | 60+ |
| Voltage | 24V(Recommend) |
| Compatible with | Aliengo or B1 Robot |
| Degrees of freedom | 6 Axis |
| Payload | 2kg |
| Reach | 740mm |
Works the whole opening time. When it gets quieter, it returns to the charging station by itself, and is back before you need it again. The robot complements your staff, it never replaces them.
Who it is for
Integrators
An arm, a sensor or a chassis that completes an existing set-up.
Development teams
Parts for your own device, with documentation.
Maintenance
Spare equipment for fleets already in the field.
Category Special equipment
Pick by the measurement, not by the brochure.
| Model | Weight | Field of view | Scanning method | Scanning distance |
|---|---|---|---|---|
| 4D LiDAR | 230g · About 100g · About 500g | 360° × 90° | Non-contact brushless rotating mirror scanning | 30m |
| PaintMaster Mini | 21.85 kg | — | — | — |
| PaintMaster Pro | 58.6 kg | — | — | — |
| Z1THIS PAGE | 405g | — | — | — |
