Quadruped robots · Up front

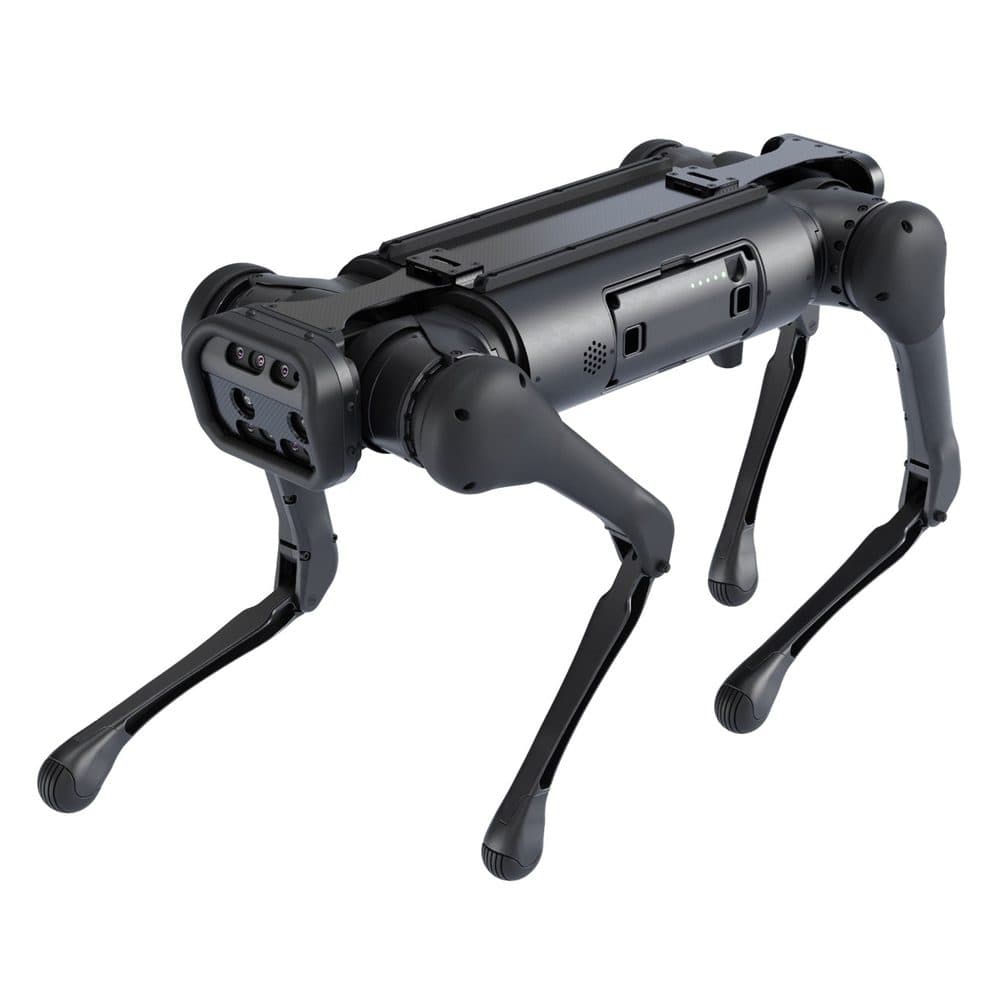

Aliengo
- Weight (without battery)
- 21.5 kg ±1kg
- Load
- 13 kg
- Battery capacity
- 12600 mAh
- Degrees of freedom (motors)
- 12
Technical specification · from the datasheet
| Weight (without battery) | 21.5kg ±1kg |
|---|---|
| Encoder per joint | Motor Encoder x1, Output-end Encoder x1 |
| L × W × H (standing) | 0.65*0.31*0.6m |
| L × W × H (folded) | 0.60*0.31*0.15m |
| Load | 13kg |
| Maximum walking speed | >1.5m/s |
| Climbing angle | ≤25° |
| External interfaces | EtherNetx2, USB3.0x2 |
| Battery capacity | 12600mAh |
| Sensing function | Depth Camera (2), Visual Odometer Camera (1) |
| Degrees of freedom (motors) | 12 |
| Foot-end sensors | 4 |
| Steps, slopes and stairs | Stand up on the ground / Roll over and stand up |
| Output power | 5V, 12V, 19V, BAT(24V~30V) |
Works the whole opening time. When it gets quieter, it returns to the charging station by itself, and is back before you need it again. The robot complements your staff, it never replaces them.
Who it is for
Site security
Patrols across a site where stairs and thresholds stop wheels.
Industry and energy
Regular field readings where the route is awkward or unsafe for a person.
Research
A development team that needs a platform with open control.
Category Quadruped robots
Pick by the measurement, not by the brochure.
Enquiry
Tell us where the robot should stand.
Within two working days you get a proposal for your space and a date to see the robot working. No phone call, no obligation.
