Quadruped robots · Up front

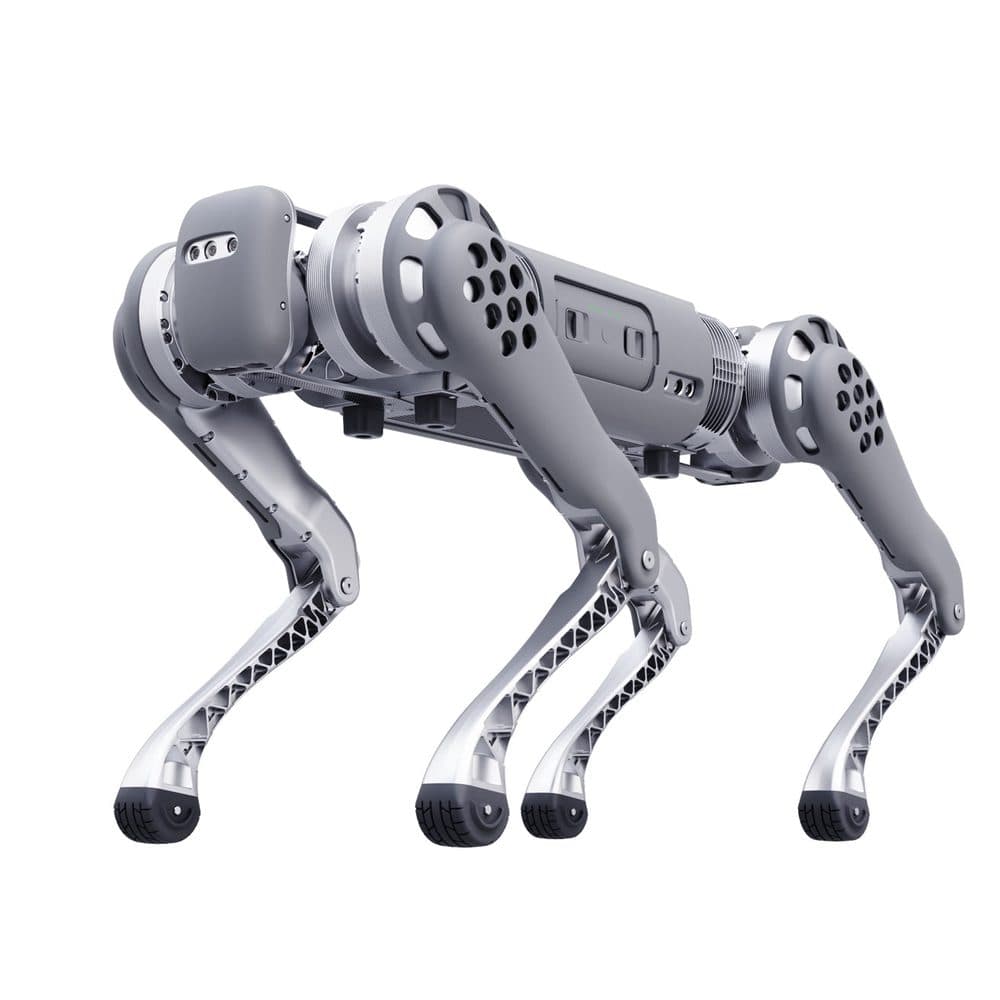

B1
- Continuous walking load
- 20 kg
- Maximum standing load
- 80 kg
- Rated capacity
- 18000 mAh
- Rated voltage
- 51.8 V
Technical specification · from the datasheet
| L × W × H (standing) | 1126*467*636mm |
|---|---|
| L × W × H (folded) | 1202*467*297mm |
| Whole machine (battery included) | About 50kg |
| Battery | About 5kg |
| Continuous walking load | 20kg |
| Maximum standing load | 80kg |
| Main control CPU | Intel i5-1135G7 |
| Sensing computing platform | Multiple brands and models available, XavierNX *3 |
| Sensing sensors | Intel RealSense D430*5 |
| Rated capacity | 18000mAh |
| Rated voltage | 51.8V |
| Rated energy | 932.4Wh |
| Charge limit voltage | 58.8V |
| Charge time | 1-2h |
Works the whole opening time. When it gets quieter, it returns to the charging station by itself, and is back before you need it again. The robot complements your staff, it never replaces them.
Who it is for
Site security
Patrols across a site where stairs and thresholds stop wheels.
Industry and energy
Regular field readings where the route is awkward or unsafe for a person.
Research
A development team that needs a platform with open control.
