Quadruped robots · Up front

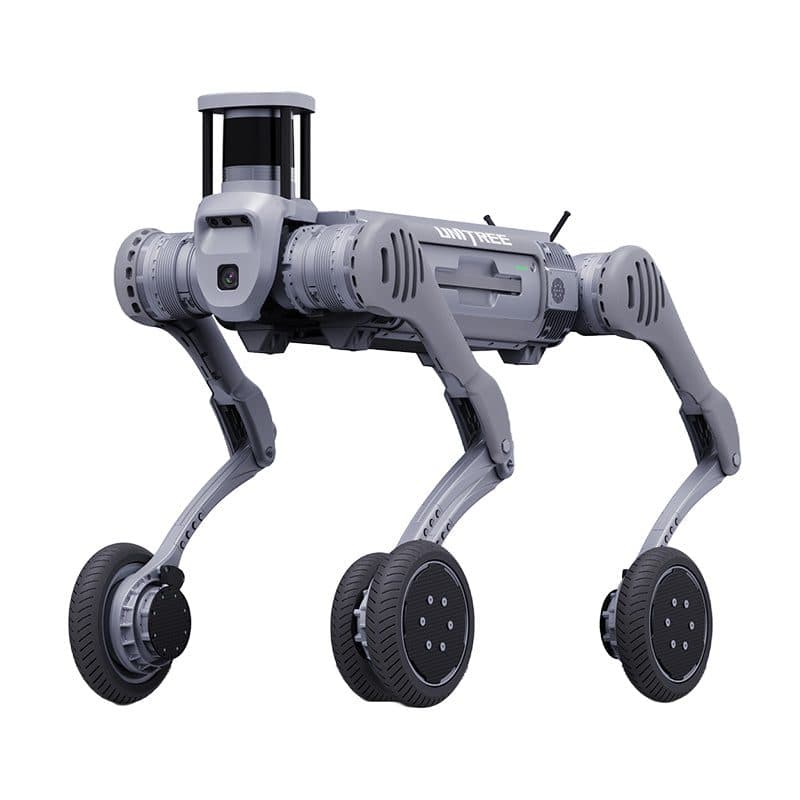

B2-W
- Maximum speed
- 15 km/h [1]
- Maximum load (standing)
- 120 kg
- Wheel diameter
- 225 mm
- Maximum wheel speed
- 50 rad/s
Technical specification · from the datasheet
| Size (standing) | ≈ 1098mm×550mm×758mm |
|---|---|
| Size (lying prone) | ≈ 950mm×550mm×450mm |
| Weight | ≈85kg Total weight (battery included) |
| Battery capacity | >2kwh,voltage 58V |
| Maximum speed | 15km/h [1] |
| Maximum load (standing) | 120kg |
| Load (walking) | > 40kg |
| Wheel diameter | 225mm |
| Maximum wheel speed | 50rad/s |
| Maximum wheel torque | 40N.m |
| Continuous stair climbing | Stairs of 20~25cm |
| Climbing ability | Climb up and down stairs of 40cm in forward direction |
| Operating temperature | -20°C ~ 55°C |
| Climbing angle | > 45° |
| Ingress protection | IP67 |
Works the whole opening time. When it gets quieter, it returns to the charging station by itself, and is back before you need it again. The robot complements your staff, it never replaces them.
Who it is for
Site security
Patrols across a site where stairs and thresholds stop wheels.
Industry and energy
Regular field readings where the route is awkward or unsafe for a person.
Research
A development team that needs a platform with open control.
Category Quadruped robots
Pick by the measurement, not by the brochure.
Enquiry
Tell us where the robot should stand.
Within two working days you get a proposal for your space and a date to see the robot working. No phone call, no obligation.
